Cables for maritime applications
These cables are used for power, communication, and instrumentation purposes in vessels. Shielded types protect the signal from electromagnetic interference and ensure continuous signal quality. Halogen-free and flame-retardant construction ensures a non-corrosive and highly visible environment in the event of a fire. Moreover, the special design ensures circuit integrity for at least 180 minutes under fire conditions.

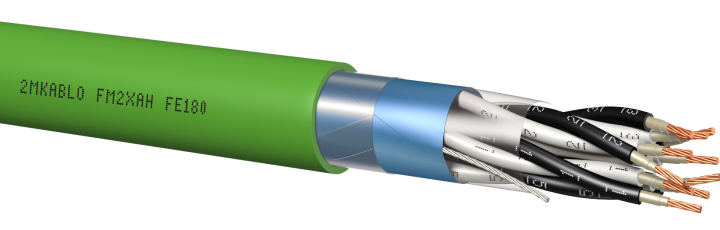

FM2AH FE180

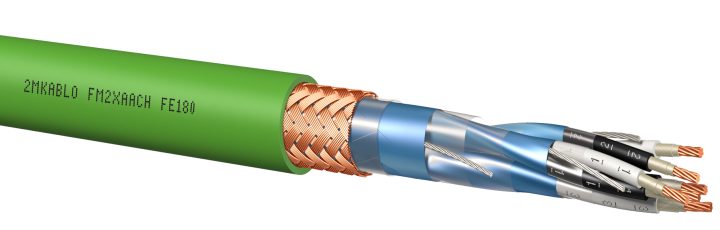

FM2XAACH FE180

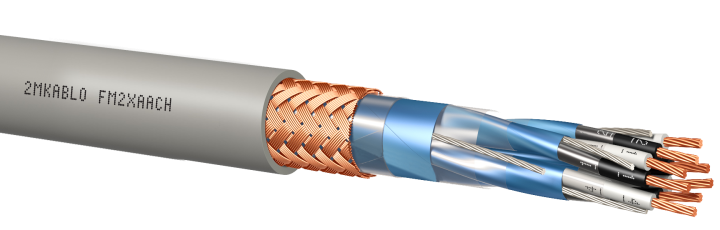

FM2XAACH

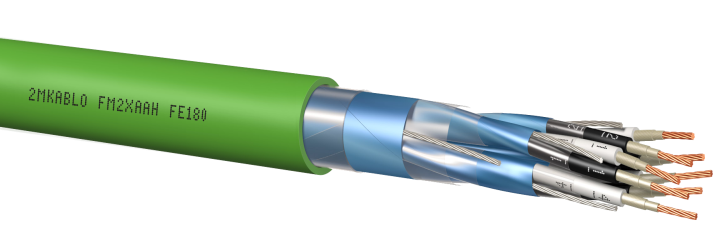

FM2XAAH FE180

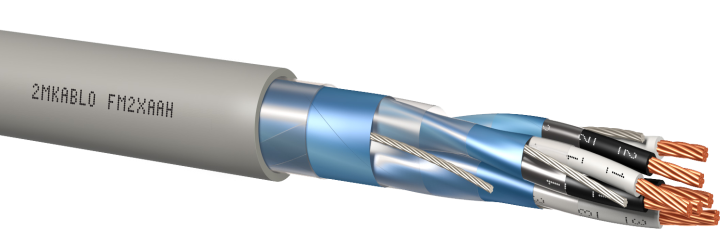

FM2XAAH

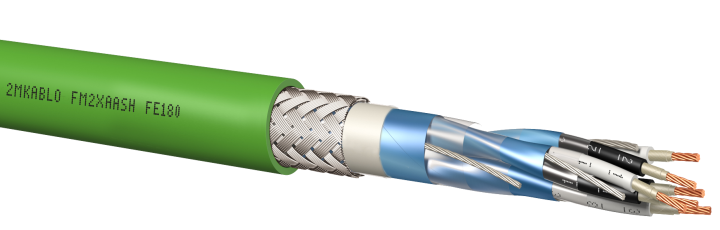

FM2XAASH FE180

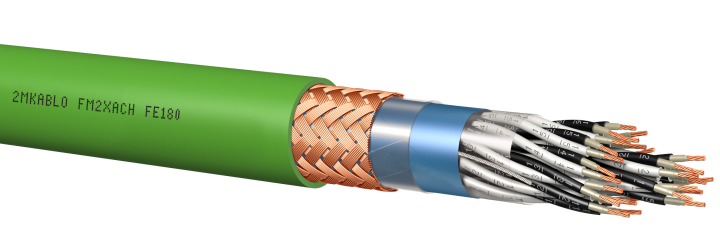

FM2XACH FE180
FM2XACH
FM2XAH

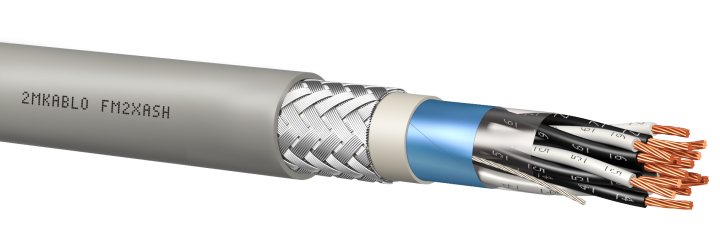

FM2XASH

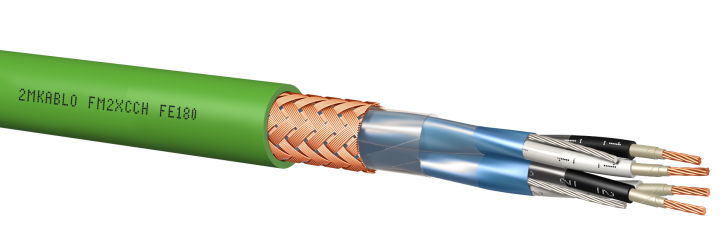

FM2XCCH FE180

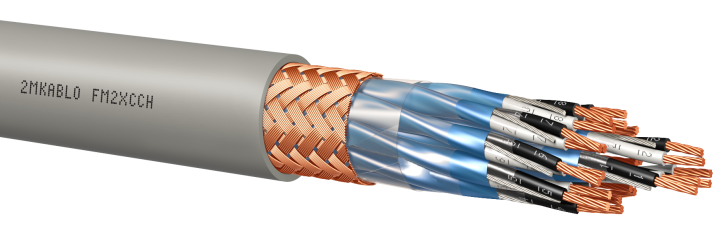

FM2XCCH

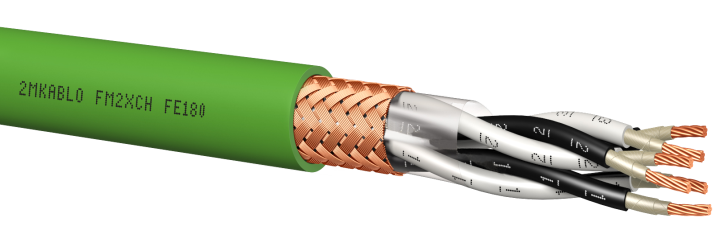

FM2XCH FE180

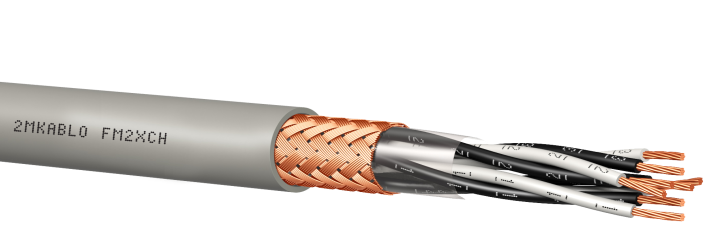

FM2XCH

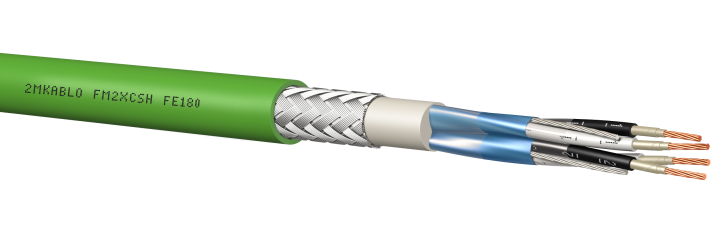

FM2XCSH FE180

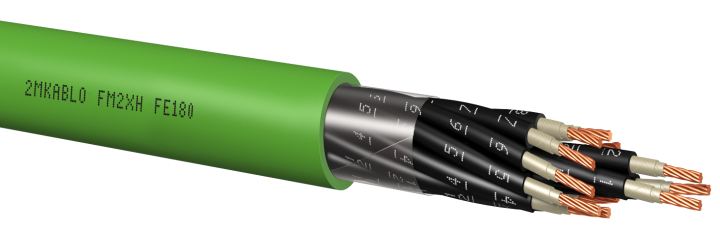

FM2XH FE180

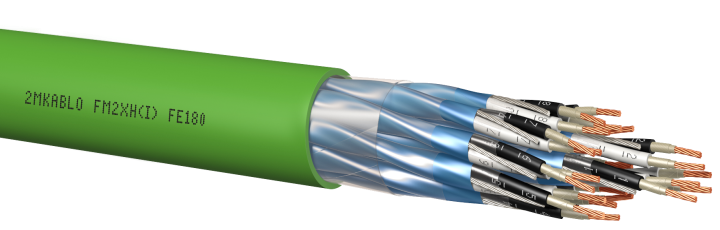

FM2XH(I) FE180

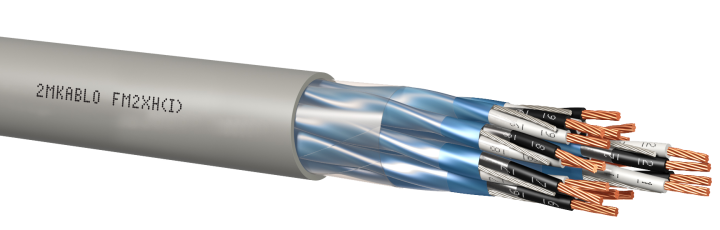

FM2XH(I)

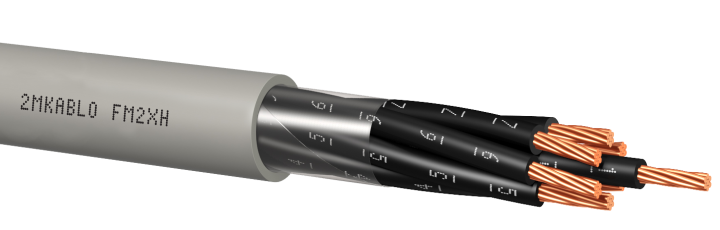

FM2XH

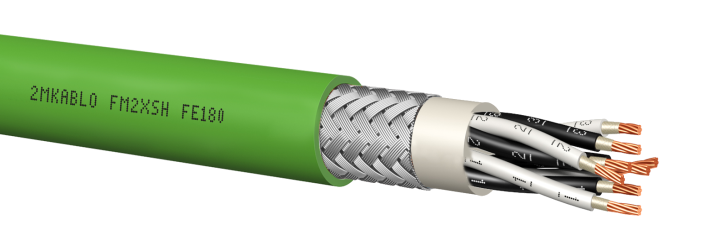

FM2XSH FE180

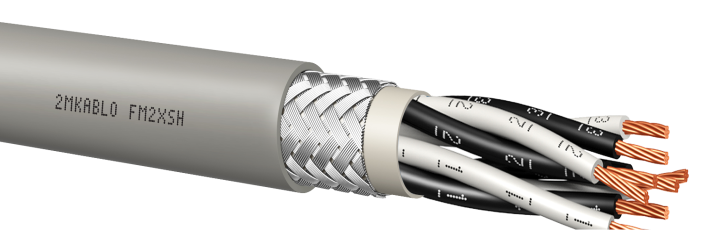

FM2XSH

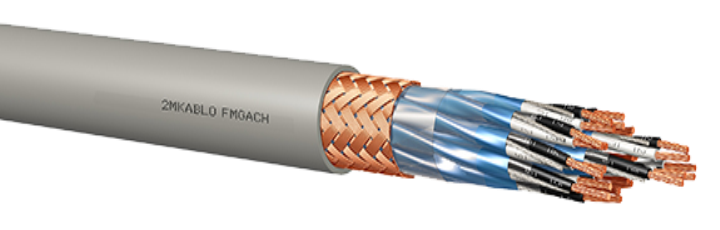

FMGACH

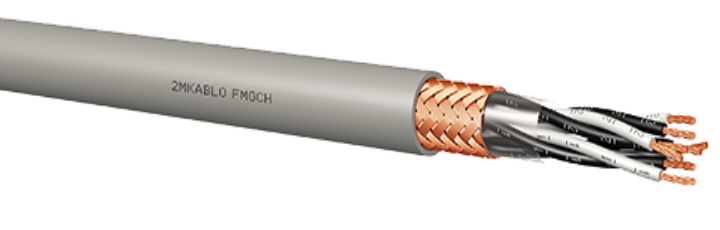

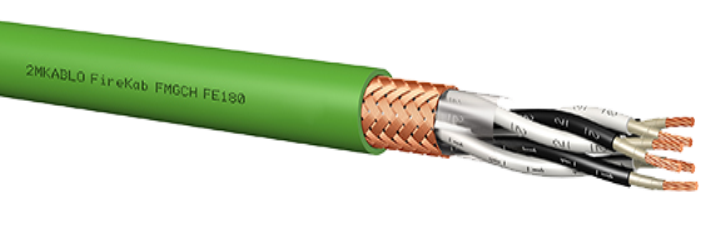

FMGCH FE180
FMGCH

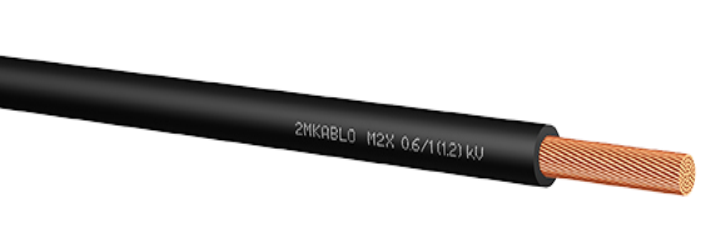

M2X

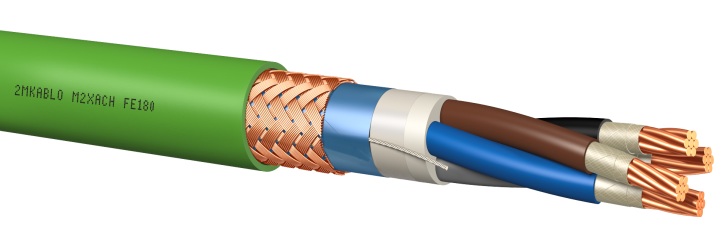

M2XACH FE180

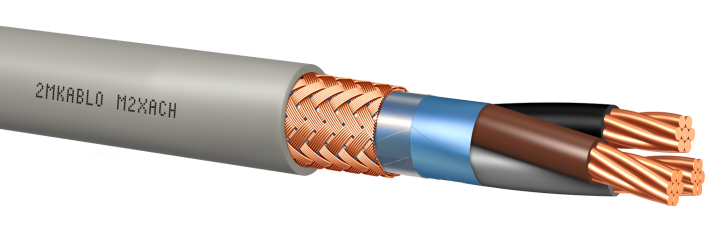

M2XACH

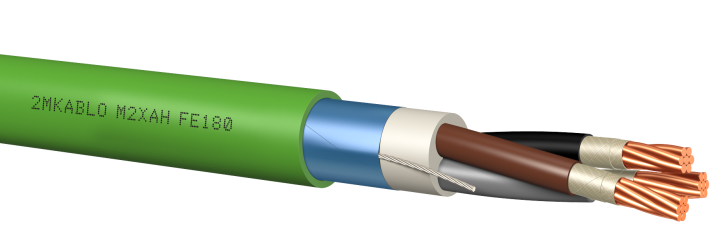

M2XAH FE180

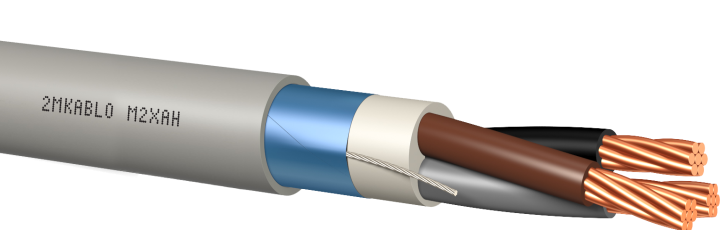

M2XAH

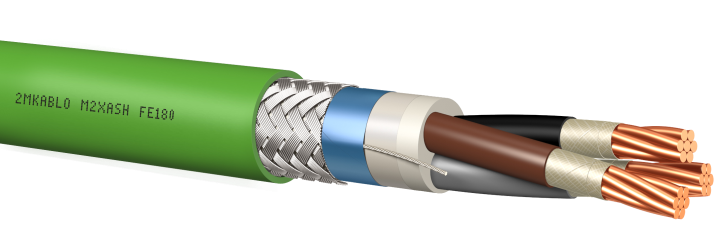

M2XASH FE180

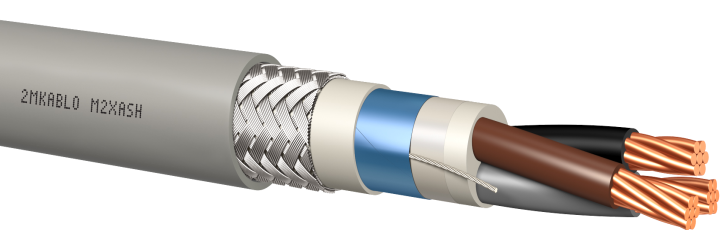

M2XASH

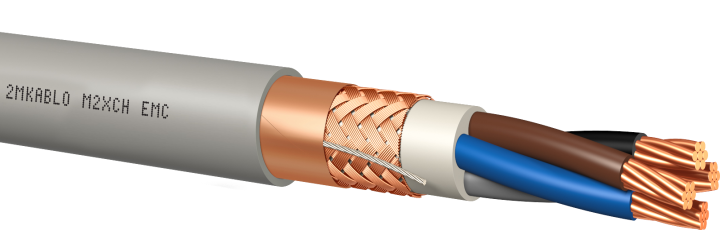

M2XCH EMC

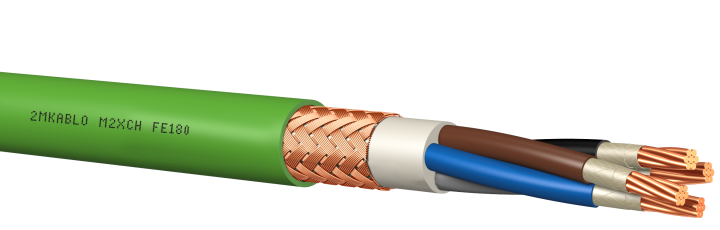

M2XCH FE180

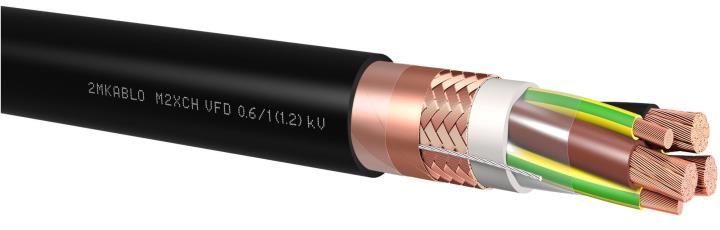

M2XCH VFD

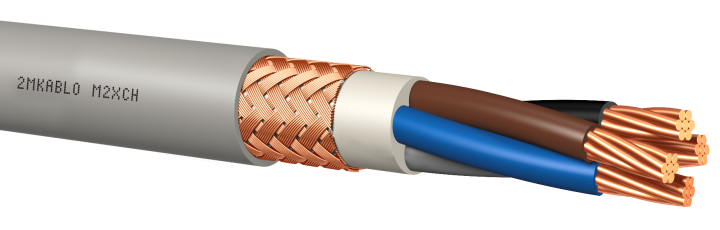

M2XCH

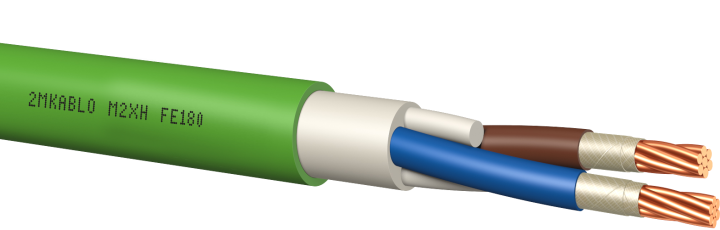

M2XH FE180

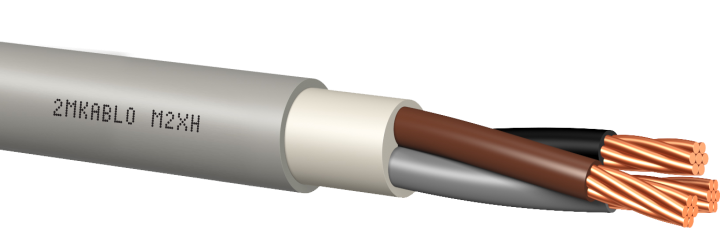

M2XH

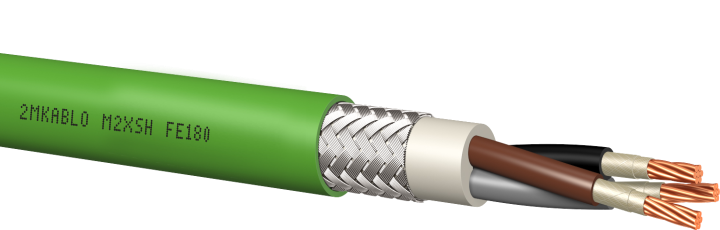

M2XSH FE180

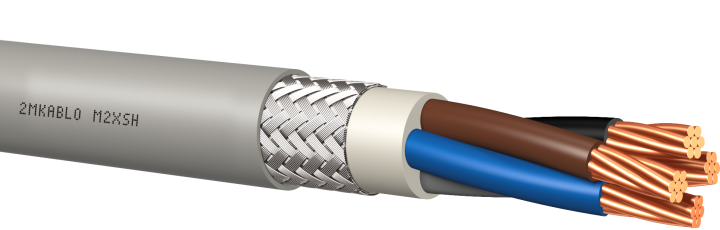

M2XSH

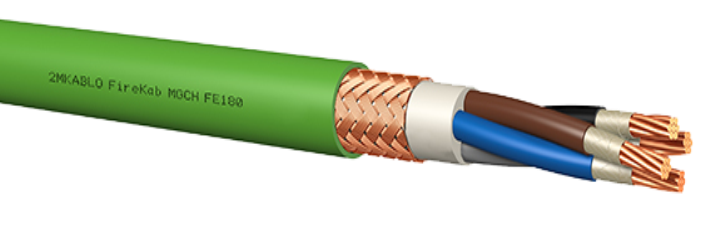

MGCH FE180

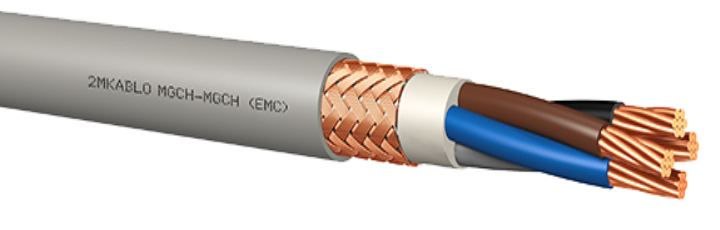

MGCH

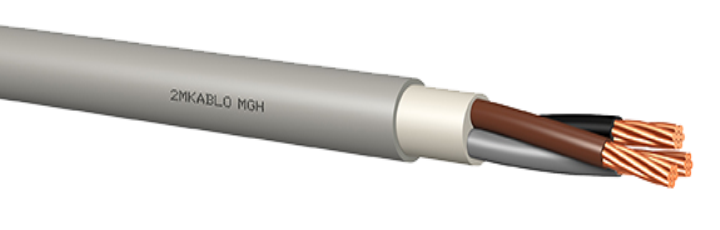

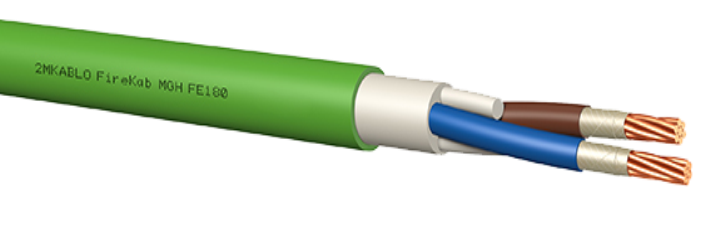

MGH FE180
MGCH
Other types of cables
List of services
-
Instrumentation cablesList item 1Used in communication and instrumentation applications in industries such as oil extraction, cement, paper, steel, and power generation, as well as in protected systems in sectors such as petrochemical plants and thermal power plants. Individually and/or fully shielded twisted pair/triad/quad types are available for applications requiring electromagnetic protection. HFFR and/or flame-resistant types are available upon request. Fully shielded - unarmored Fully shielded - armored Individually shielded - unarmored Individually shielded - armored FireKab Instrumentation Cables PAS 5308 Cables
-
Control cablesList item 2Used for signal transmission in control systems for many building applications. These cables operate at 300/500 V and have cross-sectional areas ranging from 0.14 mm² to 2.50 mm². Depending on the application, they are available with PVC, HFFR, or TPU outer sheaths, bare or tinned copper, and shielded or unshielded versions. HFFR versions are less flammable in the event of a fire, are usually self-extinguishing, have low smoke density, and do not emit toxic or corrosive gases in the event of a fire. PVC control cables Halogen-free control cables
-
Power cablesList item 3Energy, utility, and lighting cables for outdoor installations. Used in cable trays, antennas, or directly buried, they operate at voltages from 300 V to 1 kV. Harmonized types are used as building cables. Halogen-free and flame-retardant versions ensure a non-corrosive and highly visible environment during fires. Armored and/or fire-resistant versions are available upon request. Unarmored power cables, armored power cables, and FireKab power cables
-
Intercom and fire alarm cablesThese cables are manufactured according to the TS IEC 60189-2 standards and are used in fixed applications, switchboards, or subscriber systems. Depending on the application, PVC or HFFR outer sheaths, with bare or tinned copper conductors, and shielded or unshielded cables are available. HFFR versions are less flammable in a fire, usually self-extinguishing, have low smoke density, and do not emit toxic and corrosive gases in a fire. Fire alarm cables are used in indoor and outdoor spaces such as schools, hospitals, conference rooms, and shopping centers where fire safety regulations are observed. These cables are preferred for communication, ventilation, lighting, and intercom systems. Shielded types protect the signal from electromagnetic interference and provide continuous signal quality. Indoor telephone cables Fire alarm cables Industrial electronic cables
-
Data cablesUsed for data communication in automation systems, computer networks, and electronic control systems. These cables are manufactured with PVC, PE, HFFR, and TPU outer sheaths, armored, and screened. Designed for use in high-speed networks with high transmission rates. For Ethernet cables, the connection length may not exceed 90 m according to ISO/IEC 11801 and EN 50173. Cables designed for RS 485 or similar protocols allow longer transmission lengths of up to 1 km and can be manufactured as armored or unarmored cables for indoor and outdoor applications. RS 232-422 cables RS 485 cables Load Cell Cables
-
Servo motor cablesServomotor cables are designed for large frequency-controlled drive systems. They are used as high-power connection cables between frequency converters and motor drives, thereby reducing the effect of high electromagnetic interference signals. They are shielded against electromagnetic radiation and are suitable for use in confined spaces. Areas of application include the paper and packaging industries, the manufacture and assembly of industrial equipment, industrial pumps, air conditioning and ventilation systems, the chemical, automotive, and food industries, and conveyor belts. Black sheathed versions are suitable for direct-mounting in indoor and outdoor applications, and for fixed installation in dry, damp, and wet areas with UV resistance, acidic and oily environments, and moderate mechanical stresses. HFFR types are less flammable in fire conditions, usually self-extinguishing, have low smoke density, and do not emit toxic or corrosive gases during a fire.
-
Cathodically protected cablesCathodic protection (CP) is a corrosion control method that can be applied to buried and submerged metallic structures. The primary corrosion control method for a given structure is typically a coating system, which can be between 50% and 99% effective depending on the age, type, installation method, etc. A properly designed and maintained cathodic protection system takes care of the rest, resulting in a 100% effective corrosion protection system. CP cable is used as direct-bury DC power cable in cathodic protection systems and protects against galvanic and electrolytic corrosion of metallic objects—such as storage tanks, pipelines, wells, and marine vessels—that are buried or submerged in water. It has excellent abrasion resistance, crush resistance, chemical resistance, resistance to oil, sunlight, and moisture. PVDF insulation offers additional resistance to corrosive gases and brackish water and can be used for deep anode groundbed installations. Cathodic protection can protect all types of buried and submerged metallic structures.
-
UL-certified cablesThe 300 V instrumentation cables are dual-listed as Type PLTC according to UL 13 and Type ITC according to UL 2250. These cables are preferred for instrument and control wiring, communications, ventilation, lighting, and emergency exit intercom systems, equipment, and devices. Shielded types protect the signal from electromagnetic interference and ensure continuous signal quality. UL-approved, flexible cables for use up to 600 V are installed in cable trays, ducts, and conduits. They are used in production facilities, for all machinery, tooling, and installation work, and in industries such as the petrochemical industry. Suitable for use in dry, damp, and wet areas, outdoors, in cable trays, and open cable ducts. Power and control cables; Instrumentation, power, and control cables; Device wiring
-
Solar cablesThese cables are specialized electrical conductors for transmitting power from solar panels to inverters and other components within an installation. They are designed to operate at a normal continuous maximum conductor temperature of 90°C. The permitted service life at a maximum conductor temperature of 120°C is limited to 20,000 hours. They are suitable for indoor and/or outdoor applications in industrial and agricultural environments.
-
Charging cables for electric vehiclesThe electric vehicle charging cable can be used safely in densely populated areas, open/closed garages, and parking lots. It is also suitable for use in dry, damp, or wet areas.
